Right upper medial ductal carcinoma in situ

Loading...

Findings

Linear, branching micro-calcifications, of segmental distribution, triangular with the tip pointed towards the nipple: this distribution was clearly visible with tomography, particularly when increasingly thick sections were used (3 to 4 mm).


Diagnosis

Right upper medial ductal carcinoma in situ


Discussion

Tomosynthesis is of no apparent use in the morphological analysis of micro-calcifications (enlarged images are the gold standard). On the other hand, studying their distribution is made easier by the analysis in sections, particularly in dense breast tissue.

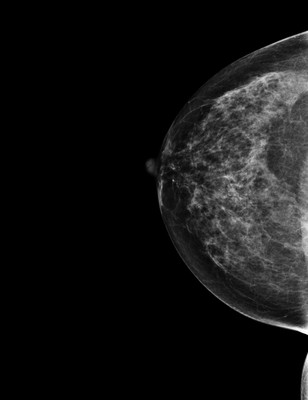

Right upper medial ductal carcinoma in situ RCC

RCC

Right upper medial ductal carcinoma in situ RML

RML

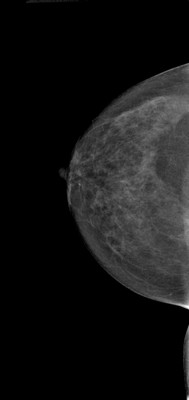

Right upper medial ductal carcinoma in situ RCC Acquisition Tomo

RCC Acquisition Tomo

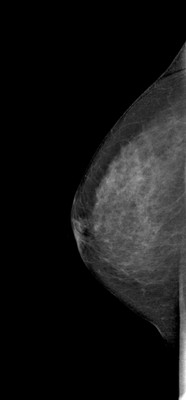

Right upper medial ductal carcinoma in situ RML Acqusition Tomo

RML Acqusition Tomo

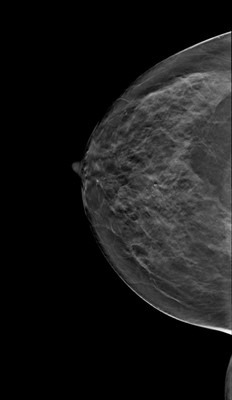

Right upper medial ductal carcinoma in situ RCC Tomosynthèse

RCC Tomosynthèse

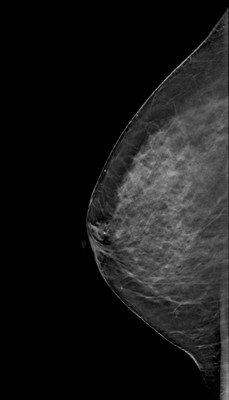

Right upper medial ductal carcinoma in situ RML Tomosynthèse

RML Tomosynthèse

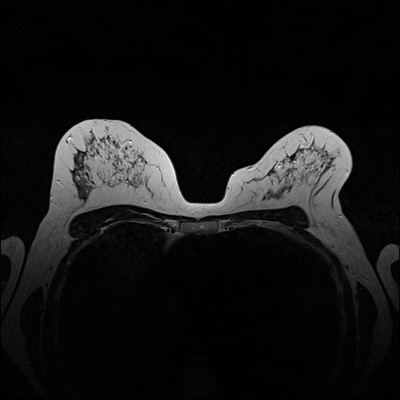

Right upper medial ductal carcinoma in situ T2

T2

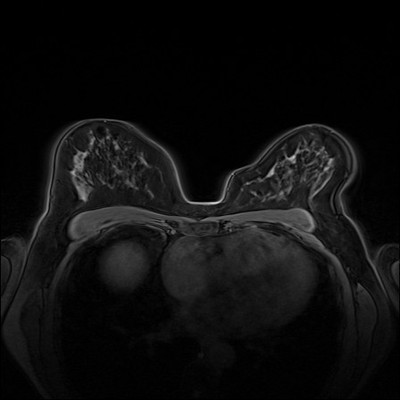

Right upper medial ductal carcinoma in situ T1 FatSat

T1 FatSat

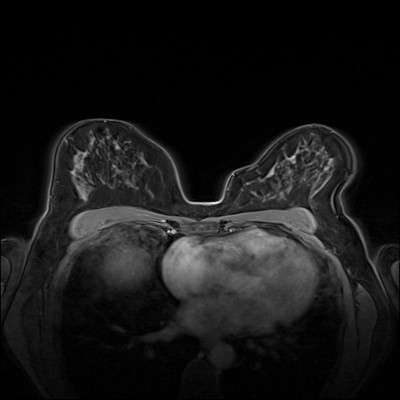

Right upper medial ductal carcinoma in situ Dynamique FS 1 min

Dynamique FS 1 min

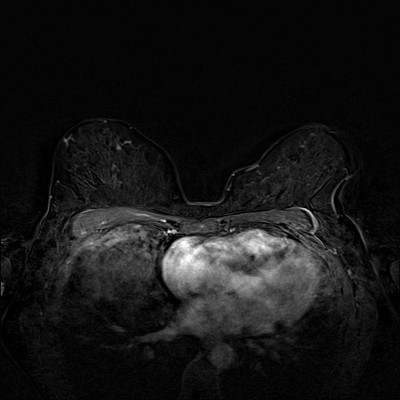

Right upper medial ductal carcinoma in situ Soustraction 1 min

Soustraction 1 min

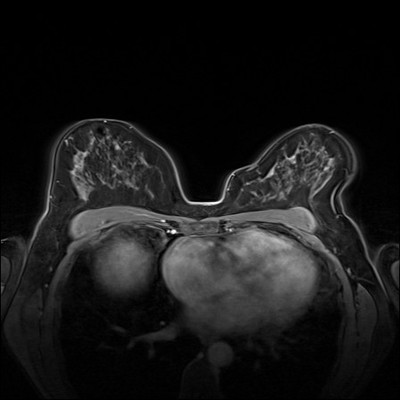

Right upper medial ductal carcinoma in situ Dynamique FS 2 min

Dynamique FS 2 min

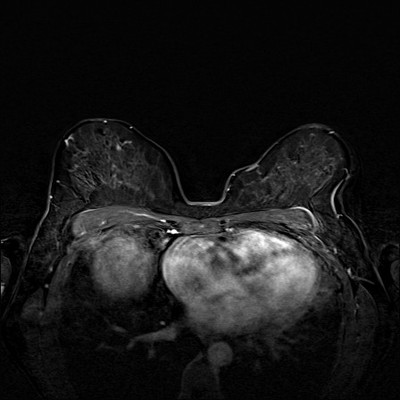

Right upper medial ductal carcinoma in situ Soustraction 2 min

Soustraction 2 min

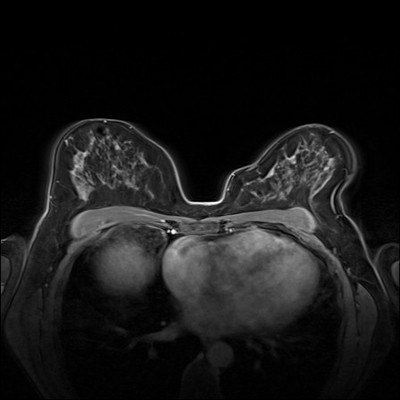

Right upper medial ductal carcinoma in situ Dynamique FS 3 min

Dynamique FS 3 min

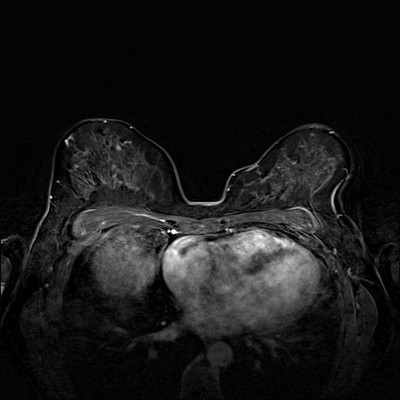

Right upper medial ductal carcinoma in situ Soustraction 3 min

Soustraction 3 min

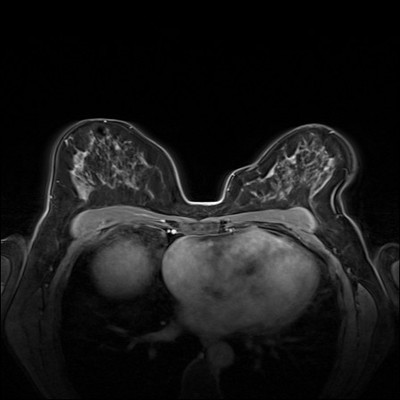

Right upper medial ductal carcinoma in situ Dynamique FS 4 min

Dynamique FS 4 min

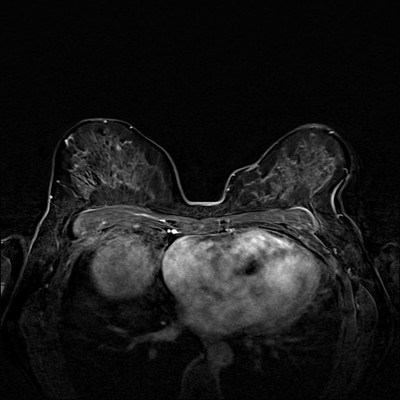

Right upper medial ductal carcinoma in situ Soustraction 4 min

Soustraction 4 min
